Are Cast Iron Orbital Hydraulic Motors the Right Choice for Your Heavy-Duty Application?

2026-02-25 0 Leave me a message

Cast iron orbital hydraulic motors combine the robustness of cast iron construction with the smooth, high-torque characteristics of orbital (gerotor) technology. In this guide, we examine their construction, benefits, and drawbacks. You’ll discover real-world applications, technical comparisons, and answers to frequently asked questions. Whether you are designing forestry equipment or agricultural machinery, understanding these motors — with insights from Qingdao Yushan Intelligent Technology Co., Ltd. — will help you make an informed decision.

📑 Quick navigation

🔹 What exactly are cast iron orbital hydraulic motors?
🔹 What are the main advantages and disadvantages of cast iron orbital hydraulic motors?
🔹 Which industries and machines rely on cast iron orbital hydraulic motors?
🔹 How do cast iron orbital motors compare to aluminum or piston motors?
🔹 Frequently Asked Questions about cast iron orbital hydraulic motors

What exactly are cast iron orbital hydraulic motors?

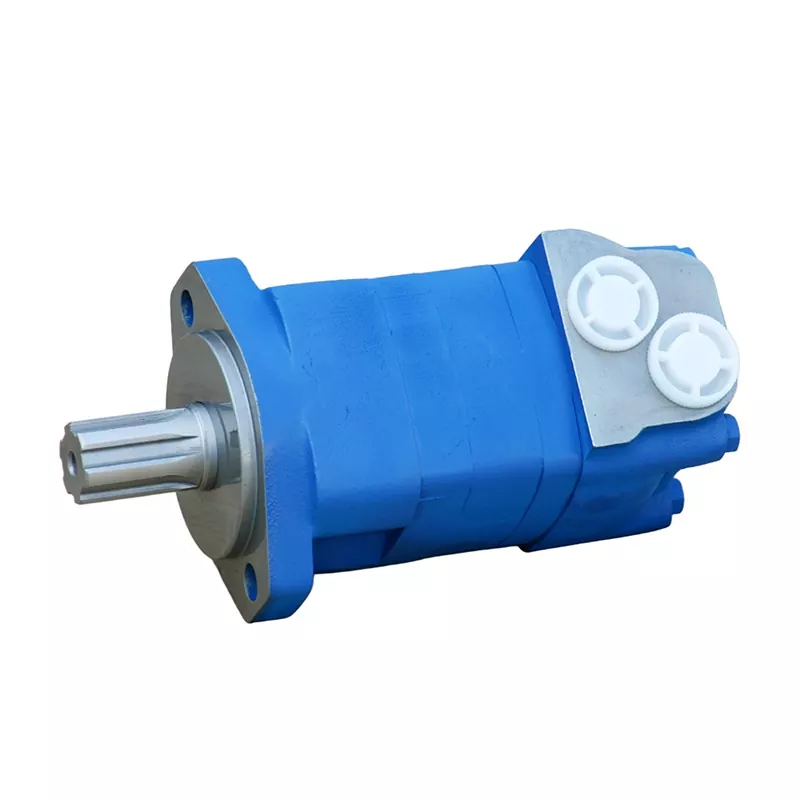

Cast iron orbital hydraulic motors are a type of low-speed high-torque (LSHT) motor that uses an internal gerotor mechanism enclosed in a durable cast iron housing. The orbital (or gerotor) element creates fluid chambers that rotate and produce smooth, powerful torque even at low RPM. The cast iron body provides exceptional strength, vibration damping, and thermal stability. These motors are widely used in construction, agriculture, and material handling. Qingdao Yushan Intelligent Technology Co., Ltd. produces a range of such motors optimized for extreme environments.

What are the main advantages and disadvantages of cast iron orbital hydraulic motors?

✅ Advantages (Pros)

Extreme durability: Cast iron housing withstands shocks, corrosion, and mechanical abuse.
High torque density: Orbital design delivers high torque from a compact package.
Smooth operation: Low speed performance without pulsations; ideal for precision control.
Heat dissipation: Cast iron acts as a heat sink, extending seal and fluid life.
Cost-effective: Compared to bent-axis piston motors, cast iron orbital motors offer lower initial cost.

⚠️ Disadvantages (Cons)

Heavier weight: Cast iron adds mass, which can be a drawback in weight-sensitive mobile equipment.
Lower efficiency at high speed: Orbital motors are optimized for low RPM; efficiency drops above 500–600 rpm.
Internal leakage: Gerotor clearances increase over time, reducing volumetric efficiency.
Corrosion risk: Although cast iron is robust, it can rust if paint/coating is damaged (stainless options exist but cost more).
Noise: Some designs produce more noise than piston motors under high load.

Which industries and machines rely on cast iron orbital hydraulic motors?

Thanks to their robustness and high torque, these motors are found everywhere that demands reliability. Qingdao Yushan Intelligent Technology Co., Ltd. supplies motors for the following applications:

Industry	Typical equipment	Why cast iron orbital?
Agriculture	Combine harvesters, balers, manure spreaders	High torque, tolerance to dust/ debris
Construction	Augers, compactors, concrete mixers	Shock resistance, compact size
Forestry	Log splitters, winches, delimbers	Durability in dirty environments
Material handling	Conveyors, lift tables, sweeper drives	Smooth start/stop, low speed control
Mining	Roof bolters, shuttle cars	Rugged cast iron body protects internals

How do cast iron orbital motors compare to aluminum or piston motors?

Parameter	Cast iron orbital	Aluminum orbital	Piston (bent-axis)
Weight	Heavy	Light	Medium
Max torque (typical)	High (up to 8000 Nm)	Medium (up to 4000 Nm)	Very high
Speed range	0–650 rpm	0–800 rpm	500–4000 rpm
Cost	$$	$	$$$$
Shock tolerance	Excellent	Good	Moderate

Data based on typical catalogues from Qingdao Yushan Intelligent Technology Co., Ltd. and industry standards.

Frequently Asked Questions about cast iron orbital hydraulic motors

Can cast iron orbital motors be used in continuous rotation applications?

Yes, they are designed for continuous rotation, but best efficiency is achieved in intermittent or low-speed continuous duty. Because of the cast iron housing, heat dissipation is better than aluminum, so they handle continuous loads well, provided the system has adequate cooling and the duty cycle is within specs. Always consult the technical data from Qingdao Yushan Intelligent Technology Co., Ltd. for thermal limits.

What type of hydraulic fluid is recommended for cast iron orbital motors?

Most manufacturers, including Qingdao Yushan Intelligent Technology Co., Ltd., recommend premium anti-wear hydraulic oil (ISO VG 32, 46, or 68) with viscosity suitable for ambient temperature. Cast iron motors are tolerant to a wide range of fluids, but water-based fluids may accelerate corrosion if the internal coatings are compromised. Regular oil changes and contamination control extend motor life significantly.

Are cast iron orbital motors bi-rotational (reversible)?

Absolutely. Most modern cast iron orbital motors are symmetrical and can be operated in both directions without modification. However, check the internal valving; some models use a check-valve arrangement that may require an external drain for reverse operation. The product manuals from Qingdao Yushan Intelligent Technology Co., Ltd. clearly indicate if a bidirectional version is used.

How do I calculate the torque output of a cast iron orbital motor?

Torque (Nm) = displacement (cm³/rev) × pressure (bar) × 0.0159 (for theoretical torque). Actual torque is lower due to mechanical losses. For example, a 400 cc motor at 200 bar delivers approx 400 × 200 × 0.0159 = 1272 Nm theoretical. Always consult the efficiency curves provided by the manufacturer like Qingdao Yushan for real-world values.

Can I replace an aluminum orbital motor with a cast iron version without changing mounts?

Mounting dimensions (flange, shaft, port sizes) are often standardized (SAE, DIN, etc.). Many cast iron motors from Qingdao Yushan Intelligent Technology Co., Ltd. are designed as direct drop-in replacements for aluminum motors. However, always verify the weight difference and ensure the mounting structure can support the extra mass.

With over two decades of hydraulic expertise, we engineer cast iron orbital motors that outperform in extreme conditions. Every motor is tested for efficiency, leakage, and durability. Our R&D team constantly innovates to reduce weight while keeping the cast iron toughness. Get in touch with our engineers for free application support, custom displacements, and quick delivery. Contact us at Qingdao Yushan Intelligent Technology Co., Ltd.
